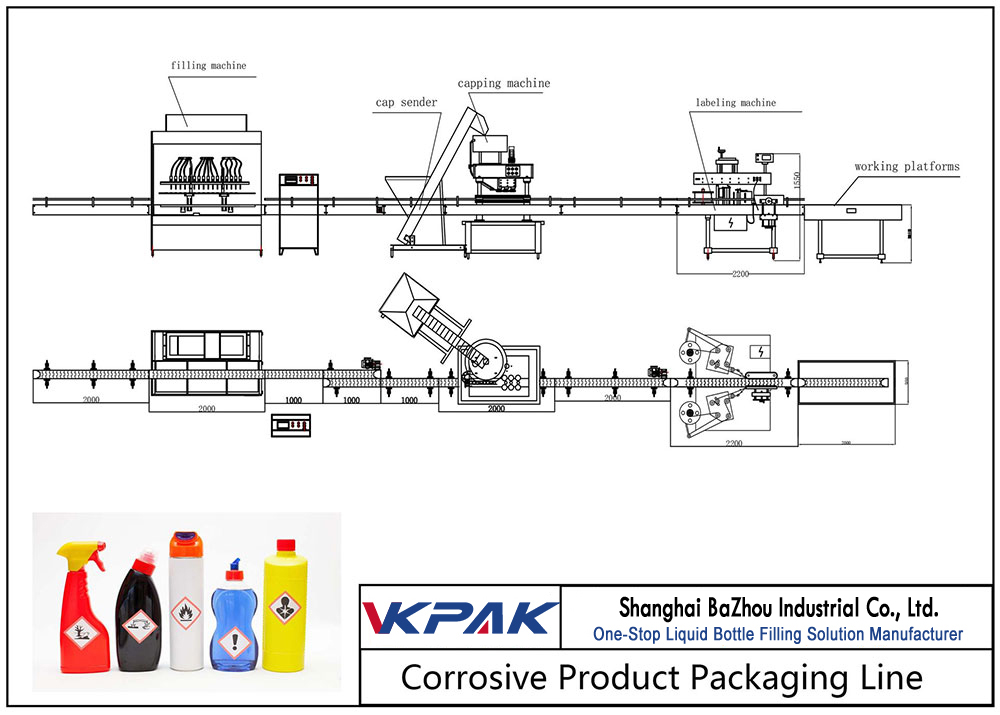

Jalur Pengisian Produk Korosif Otomatis

The VKPAK Automatic Corrosive Filler (ACF) is a specially designed timed flow volumetric filler for use in environments where caustic liquids and gasses cause accelerated deterioration to standard packaging machinery. The speed and ease of use make the ACF an ideal solution for chemical plants producing acids, bleach, ammonia, as well as food plants filling aggressive brine solutions. Each ACF machine is built from corrosive resistant material custom suited to the product they are intended for. They include a 10â€™ variable speed conveyor built from the same corrosive resistant components.
Pengisi Korosif Otomatis juga mencakup tampilan layar sentuh berwarna digital penuh dengan memori pekerjaan, tanpa botol tanpa isi, pengisian langkah atau semua mode pengisian, dan penghitung botol total dengan penyesuaian yang cepat. Sistem ACF mudah diatur, dioperasikan, dan disesuaikan dengan pelatihan minimal. Opsional semua model pnematic juga tersedia.

VKPAK supplies a complete range of equipment to fill corrosive products to meet nearly any application. Made from HDPE (high density polyethylene, these filling machines, conveyors and turntables are designed to handle the punishment of a highly corrosive environment where standard metal components would normally dissolve.
VKPAK poly filling systems use volumetric filling methods, which are extremely accurate and versatile. The fillers are designed to fill from a fraction of an ounce up to five gallons and are capable of handling viscosities ranging from thin and foamy to very thick liquids. VKPAK’s modular design can allow the design of the filler machines to have multiple tanks and fill head assemblies to isolate non-compatible products within a common frame. All VKPAK fillers are built to provide the best combination of maximum versatility, easy setup and changeover, and minimal down-time for maintenance and cleaning. VKPAK also manufactures this type of bottling equipment for table-top applications.

Kinerja utama dan fitur struktur:
1. Sistem kontrol - dengan sistem kontrol Mitsubishi PLC, mengisi dosis penyetelan acak
2. Antarmuka operasi - antarmuka layar penuh warna, antarmuka manusia-mesin sederhana, aman dan dapat diandalkan
3. Fitur Tambahan - Pemotongan dengan perangkat anti-tetes, dapat menyelam untuk mengisi dengan bahan. (Fitur ini bisa opsional)
4. Komponen listrik - menggunakan merek-merek terkenal internasional untuk memastikan peralatan tersebut andal dan akurasi tinggi.
5. Komponen mekanik - bagian utama terbuat dari bingkai PP berkualitas tinggi, bagian kontak terbuat dari silika gel korosi tidak beracun, selang PTFE, katup terbuat dari PVC.
6. Ekstensi - dapat disesuaikan untuk persyaratan konfigurasi khusus, seperti: bahan disegel, pemanasan, sterilisasi, dll.
7. Uji hitung - hitung real-time, yang mencerminkan hasil kerja secara langsung.
8. Deteksi Pengisian - Tidak ada botol, atau ketika jumlah pengisian botol tidak cukup, tidak ada pengisian
